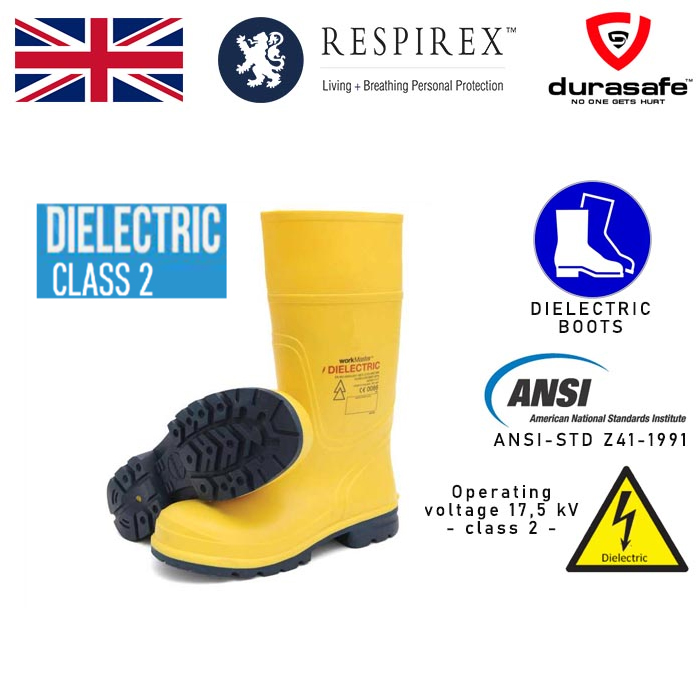

Insulating boots – Operating voltage 17,5 kV – class 2 – Size: 35
– 200 Joule epoxy-coated steel toe cap
– Injection moulded construction guarantees there are no seams to leak
– Kick off lug for hands-free removal
– Blue cleated vulcanised rubber sole for maximum grip
– 30% better than conventional safety boot soles
– Hard-wearing cut-resistant sole provides twice the wear resistance of conventional soles
– Fuel and oil-resistant sole

Electrical Protection :
Complete boot: 20 kV………..8 hours, no damage
5 kV………..<5mA Leakage current
Sole: 35 kV………..3 minutes no damage

Certification :
Safety Footwear
EN ISO 20345 I E HRO SRC CI
Electrically Insulating Footwear: EN 50321-1 Classe 2
Dielectric Footwear ASTM F1117-03(2013)
Personal Protective Equipment: PPE (EU)2016/425
Conforms to: Protective Footwear
ANSI-STD Z41-1991, Section 4
Protective Footwear CSA STD Z195-14

An electrically insulating Class 2 AC (EN 50321-1:2018) dielectric boot with an integral steel toe cap and vulcanised rubber sole for superior slip resistance.
Provides high voltage protection of up to 20kV over the complete boot for 8 hours, and 35KV over the sole for 3 minutes. This boot is suitable for live working up to 17kV.

Features:
– 200 Joule Epoxy coated steel toe cap to EN ISO 20345
– REACH Compliant
– SRC Slip Resistance, with SRA performance twice that required by EN 13287 SRA and SATRA TM144 standards
– Fuel and oil resistant
– Greater cut resistance than conventional soles
– Resistance to hot contact 60 seconds 300°C
– Energy absorbing tunnel system conforms to EN 20345 E
– Cold insulation to EN ISO 20345
